The BigBrain Project

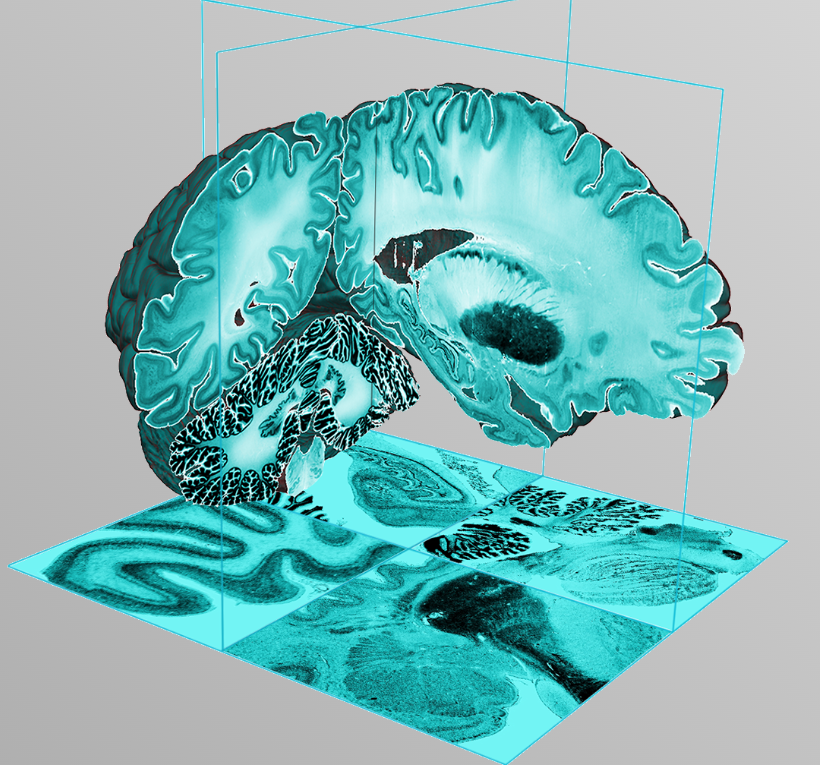

The BigBrain Project is a landmark in neuroscience: the world’s first ultra-high-resolution, 3D digital model of the human brain at 20-micron resolution. By pushing beyond the limits of MRI and CT, BigBrain allows researchers to explore brain structures at a cellular scale.
author: [bhushan thombre]
date: 2025-08-28
tags: [Neuroscience, Brain Atlas, Neuroinformatics, Histology, Connectomics]
Who Developed BigBrain?
BigBrain was the result of a collaboration between Canada and Germany, combining neuroscience, histology, and computational power:
- Montreal Neurological Institute (The Neuro, McGill University, Canada) – led by Dr. Alan Evans and team.
- Forschungszentrum Jülich (Germany) – led by Dr. Karl Zilles and Dr. Katrin Amunts.
- Supported by the Human Brain Project (European flagship initiative).
The first full dataset was released in 2013, opening a new era in brain mapping.
How It Was Created
- A post-mortem human brain was sectioned into 7,404 slices, each only 20 μm thick.
- Each slice was histologically stained and digitized at extremely high resolution.
- Computational pipelines aligned the slices into a continuous 3D reconstruction.
The result is a dataset far more detailed than MRI (1 mm typical resolution), allowing researchers to visualize cortical layers and subnuclei in exquisite detail.
Key Features
- 20 μm isotropic resolution 3D brain model
- Freely available to the global neuroscience community
- Precise delineation of cortical layers, nuclei, and substructures
- Acts as a bridge between histology and in vivo imaging (MRI, PET, fMRI)
Impact
The BigBrain atlas has become a reference standard, influencing multiple domains:
- Neuroimaging – provides ground truth for MRI parcellation and functional mapping.
- AI & Machine Learning – used for training algorithms in brain segmentation.
- Clinical Neuroscience – enhances neurosurgical planning and microstructural interpretation of pathology.
- Comparative Atlases – underpins projects that integrate micro- and macro-level brain maps.
Future Directions
BigBrain is evolving into a platform, not just a single dataset:
- Expansion to multiple brains to capture variability across individuals.
- Integration with multi-modal data (diffusion, fMRI, genetic maps).
- Development of AI-driven analysis pipelines.
- Contribution to global efforts like the Human Brain Project and the International Brain Initiative.
Conclusion
The BigBrain Project, pioneered by Amunts, Zilles, Evans, and collaborators, shows what’s possible when neuroscience and technology intersect. It has transformed how we see the brain—not only as an organ, but as a high-resolution landscape to be explored.
The BigBrain Porjct link: https://bigbrainproject.org/
Keywords: BigBrain, Human Brain Project, Alan Evans, Katrin Amunts, Karl Zilles, Montreal Neurological Institute, Forschungszentrum Jülich, Brain Atlas, Histology
